Copper Car Body Generator Aluminum Welder Stationary Spot Welding Machine

Brand Name : XWH

Model Number : D(N)B--160, D(N)B--200, D(N)B--250

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD11500-USD15500

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets/month

Delivery Time : 15 working days

Packaging Details : Wooden Case

Product name : Welders Copper Car Body Generator Aluminum Welder Stationary Spot Welding Machine

Welding Material : Aluminum, Stainless Steel, metal steel

Function : Sheet Metal Spot Weldinng

Machine type : Resistance Welding Machine

Feature : Stationary Welding Machine

MOQ : 1 set

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

Contact Now

Welders Copper Car Body Generator Aluminum Welder Stationary Spot Welding Machine

Product Description

DN (B) series medium frequency fixed point projection welding machine is mainly used for welding plates of low-carbon steel, stainless steel, aluminum alloy and some non-ferrous metals, as well as projection welding between plates and nuts and bolts.

Technical Parameters

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length( MM)	450	450	450	500
Working stroke( MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

Advantages

(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;

(2) The upper electrode moves vertically up and down, and has a smooth adjusting working stroke and auxiliary stroke. The lower electrode can be adjusted in a vertical direction;

(3) The straight solenoid valve is adopted to accelerate the reaction speed, greatly improve the operating speed of the upper head, and reduce the air flow loss;

Product Structure

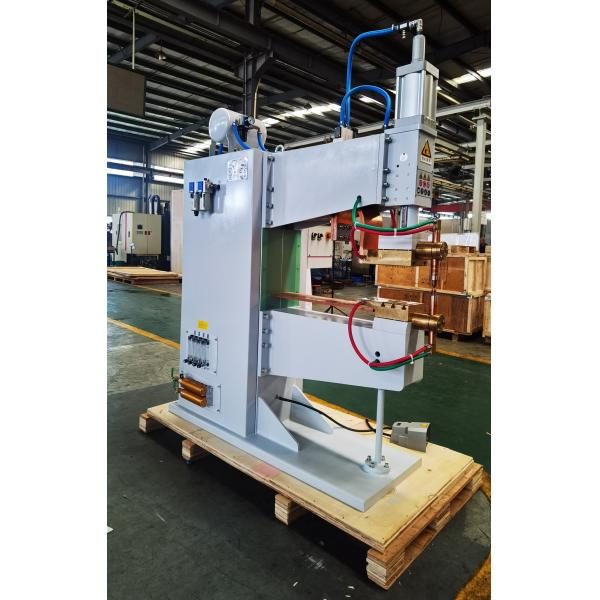

Copper Car Body Generator Aluminum Welder Stationary Spot Welding Machine

Working Environment and Conditions

①The altitude shall not exceed 1000m.

②Ambient air temperature shall be within the range of 5-40 ℃.

③The average maximum relative humidity of the air is 90%, and the average minimum temperature of the month is not more than 25 ℃.

④The dust, acid, alkali, corrosive gas or substance in the surrounding air shall not exceed the normal content.

Images

Application

Copper Car Body Generator Aluminum Welder Stationary Spot Welding Machine

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
