Small 1500 Watt Cheap Fiber Hand Laser Welding Machine Laser Welder For Sale
Product Description
Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.
Technical Parameters
| ItemsModels | XW-1000W | XW-1500W | XW-2000W |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Length | Customized | Customized | Customized |
| Total Power | ≤6KW | ≤7KW | ≤9KW |
| Conduction Types | Optical Fiber | Optical Fiber | Optical Fiber |
| Output Mode | Standard QBH | Standard QBH | Standard QBH |
| Laser Line | 1080±nm | 1080±nm | 1080±nm |
| Power Supply | 220V±10% AC | 220V±10% AC | 220V±10% AC |
| Working Humidity | <70% No Condensation | <70% No Condensation | <70% No Condensation |
| Working Temperature | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ |
| Cooling System | Industrial Chiller | Industrial Chiller | Industrial Chiller |
| Welding speed | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min |
| Operation System | Hand-held Welding | Hand-held Welding | Hand-held Welding |
| Standard Output | ±2% | ±2% | ±2% |
| Weight | ≤185KG | ≤185KG | ≤185KG |
| Power Source | 220V/50Hz/40A | 220V/50Hz/60A | 380V/50Hz/60A |
| Dimension | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm |
Advantages
1. The welded joint is beautiful and smooth.
2. The welding work surface is not distorted, the welding is firm, and there is no need for subsequent polishing procedures, which saves time and price.
3. Faster welds can be 2 to 10 times faster than conventional welds.
4. Easy to operate, no training required.
5. The welding joint is smooth and beautiful, which can save your time.
6. No distortion or welding marks on the work surface.
7. Laser welding less consumables, long service life. It's safer and greener.
Schematic Diagram of Product Structure
①Hand held welding joint ②Consumable accessories kit
③Control Panel④Optical Master⑤Wire Feeder ⑥Consumable accessories kit
⑦Emergency Stop Switch, Key Switch, Power Button ⑧Conducting Wire
Shutdown Sequence
①After the work stops, it is necessary to press the laser off the control panel first.
② Turn off the power button, emergency stop button, air switch, gas tank valve.
Note: The red button on the left is the emergency stop button(Press this button quickly can achieve protective measures).
③.Place the hand-held welding joint on the bracket on the top of the equipment.

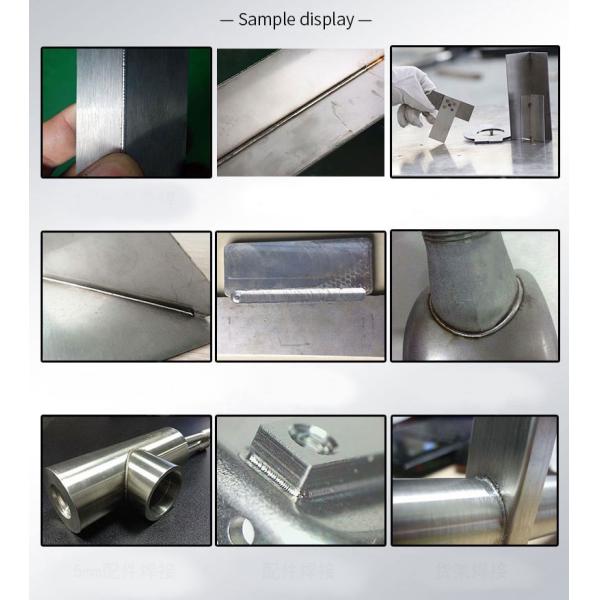

Application
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
